BS Series

Thermal Transfer Heat Exchangers:

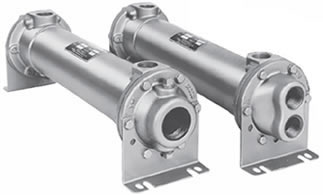

Shell & Tube Heat Exchangers



Features:



Copper & Steel Construction
  Optional Non-Ferrous Construction
  Competitively Priced
  1/4” or 3/8” Tubes Standard
  Water to Water Applications
  Sea Water Applications
  Optional 90/10 Copper Nickel Cooling
Tubes and Bronze End Bonnets for Sea
Water Service
  SAE O-Ring Shell Side connections; NPT Tube Side connections
  End Bonnets Removable for Servicing
  Mounting Feet Included (May be
Rotated in 90° Increments)



Ratings:

  Maximum Shell Pressure: 250 psi
  Maximum Tube Side Pressure 150 psi
  Maximum Temperature 350° F



Materials:

  Tubes Copper
  Hubs & Tubesheets Steel or Brass
  Shell Steel or Brass
  Baffles Brass
  End Bonnets Cast Iron
  Mounting Brackets Steel
  Gaskets Nitrile Rubber/Cellulose Fiber
  Nameplate Aluminum Foil

BS Series

- PDF DATASHEET
- Buy Online

Quotes, Engineering & Ordering Information: Industrial Heat Transfer, please contact us: 1-805-484-2992
