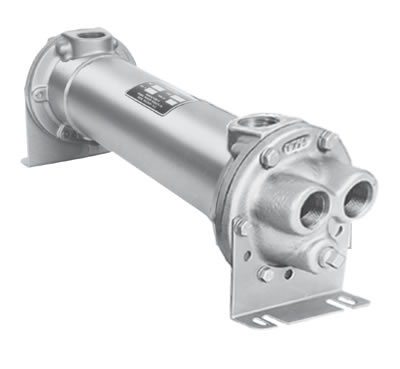

B Series Four Pass

Thermal Transfer Heat Exchangers:

Shell & Tube Heat Exchangers




Features:




Copper & Steel Construction

  Optional Non-Ferrous Construction
  Competitively Priced
  1/4” or 3/8” Tubes Standard
  Water to Water Applications
  Sea Water Applications
  Optional 90/10 Copper Nickel Cooling
Tubes and Bronze End Bonnets for Sea
Water Service
  NPT, SAE O-Ring, SAE Flange, or BSPP
Shell Side Connections Available
  End Bonnets Removable for Servicing
  Mounting Feet Included (May be
Rotated in 90° Increments)



Ratings:


  Maximum Shell Pressure: 250 psi
  Maximum Tube Side Pressure 150 psi
  Maximum Temperature 350° F



Materials:


  Tubes Copper
  Hubs & Tubesheets Steel or Brass
  Shell Steel or Brass
  Baffles Brass
  End Bonnets Cast Iron
  Mounting Brackets Steel
  Gaskets Nitrile Rubber/Cellulose Fiber
  Nameplate Aluminum Foil

C Series

- PDF DATASHEET
- Buy Online



Four Pass Units:
B-1002-A4-F-BR-B
B-1003-A4-F-BR-B
B-1004-A4-F-BR-B
B-1202-A4-F-BR-B
B-1204-A4-F-BR-B
B-701-A4-F-BR-B
B-702-A4-F-BR-B
B-702-A4-F-BR-B-Z
B-703-A4-F-BR-B
B-1004-A6-F-BR-B
B-1203-A6-F-BR-B
B-701-A6-F-BR-B
B-702-A6-F-BR-B
B-1002-B4-F-BR-B
B-1003-B4-F-BR-B
B-1004-B4-F-BR-B
B-1203-B4-F-BR-B
B-1204-B4-F-BR-B
B-1206-B4-F-BR-B-Z
B-1208-B4-F-BR-B-Z
B-701-B4-F-BR-B
B-701-B4-F-BR-B-Z
B-702-B4-F-BR-B
B-703-B4-F-BR-B
B-703-B4-F-BR-B-Z
B-1002-B6-F-BR-B
B-1204-B6-F-BR-B
B-701-B6-F-BR-B
B-1002-C4-F-BR-B
B-1003-C4-F-BR-B
B-1003-C4-F-BR-B-Z
B-1004-C4-F-BR-B
B-1004-C4-F-BR-B-Z
B-1202-C4-F-BR-B
B-1203-C4-F-BR-B
B-1204-C4-F-BR-B
B-1205-C4-F-BR-B
B-1602-C4-F-BR-B
B-1602-C4-F-BR-B-Z
B-1605-C4-F-BR-B
B-701-C4-F-BR-B
B-702-C4-F-BR-B
B-703-C4-F-BR-B
B-703-C4-F-BR-B-Z
B-1002-C6-F-BR-B
B-1004-C6-F-BR-B
B-1203-C6-F-BR-B
B-1204-C6-F-BR-B
B-1206-C6-F-BR-B
B-1208-C6-F-BR-B
B-1605-C6-F-BR-B
B-1605-C6-F-BR-B-Z
B-1606-C6-F-BR-B
B-1004-D4-F-BR-B-Z
B-1204-D4-F-BR-B-Z
B-1205-D4-F-BR-B-Z
B-1206-D4-F-BR-B
B-1604-D4-F-BR-B-Z
B-1608-D4-F-BR-B
B-1610-D4-F-BR-B
B-703-D4-F-BR-B-Z
B-1003-D6-F-BR-B-Z
B-1602-D6-F-BR-B
B-1603-D6-F-BR-B
B-1608-D6-F-BR-B
B-1002-A4-F-BR-CN-B-Z
B-1003-A4-F-BR-CN-B-Z
B-1004-A4-F-BR-CN-B-Z
B-1202-A4-F-BR-CN-B
B-1202-A4-F-BR-CN-B-Z
B-1203-A4-F-BR-CN-B-Z
B-1204-A4-F-BR-CN-B-Z
B-701-A4-F-BR-CN-B-Z
B-702-A4-F-BR-CN-B-Z
B-703-A4-F-BR-CN-B
B-703-A4-F-BR-CN-B-Z
B-1002-A4-F-BR-CN
B-1003-A4-F-BR-CN
B-1003-A4-F-BR-CN-Z
B-1202-A4-F-BR-CN
B-1202-A4-F-BR-CN-Z
B-701-A4-F-BR-CN
B-701-A4-F-BR-CN-Z
B-702-A4-F-BR-CN
B-703-A4-F-BR-CN
B-703-A4-F-BR-CN-Z
B-1002-A6-F-BR-CN-B-Z
B-1003-A6-F-BR-CN-B-Z
B-1004-A6-F-BR-CN-B-Z
B-1204-A6-F-BR-CN-B-Z
B-701-A6-F-BR-CN-B-Z
B-702-A6-F-BR-CN-B-Z
B-703-A6-F-BR-CN-B-Z
B-1002-A6-F-BR-CN
B-701-A6-F-BR-CN
B-702-A6-F-BR-CN
B-702-A6-F-BR-CN-Z
B-1002-B4-F-BR-CN-B-Z
B-1003-B4-F-BR-CN-B-Z
B-1003-B4-F-BR-CN-B-Z
B-1004-B4-F-BR-CN-B
B-1004-B4-F-BR-CN-B-Z
B-1202-B4-F-BR-CN-B-Z
B-1203-B4-F-BR-CN-B-Z
B-1204-B4-F-BR-CN-B-Z
B-1604-B4-F-BR-CN-B-Z
B-1605-B4-F-BR-CN-B-Z
B-701-B4-F-BR-CN-B-Z
B-702-B4-F-BR-CN-B-Z
B-703-B4-F-BR-CN-B-Z
B-1002-B4-F-BR-CN
B-1002-B4-F-BR-CN-Z
B-1003-B4-F-BR-CN
B-1004-B4-F-BR-CN-Z
B-1202-B4-F-BR-CN-Z
B-1203-B4-F-BR-CN
B-1204-B4-F-BR-CN
B-1603-B4-F-BR-CN
B-702-B4-F-BR-CN
B-702-B4-F-BR-CN-Z
B-703-B4-F-BR-CN
B-703-B4-F-BR-CN-Z
B-1002-B6-F-BR-CN-B-Z
B-1003-B6-F-BR-CN-B-Z
B-1004-B6-F-BR-CN-B-Z
B-1202-B6-F-BR-CN-B-Z
B-1203-B6-F-BR-CN-B-Z
B-1204-B6-F-BR-CN-B-Z
B-1205-B6-F-BR-CN-B-Z
B-1604-B6-F-BR-CN-B-Z
B-701-B6-F-BR-CN-B
B-701-B6-F-BR-CN-B-Z
B-702-B6-F-BR-CN-B
B-702-B6-F-BR-CN-B-Z
B-703-B6-F-BR-CN-B-Z
B-1003-B6-F-BR-CN
B-1003-B6-F-BR-CN-Z
B-1203-B6-F-BR-CN
B-1203-B6-F-BR-CN-Z
B-1204-B6-F-BR-CN
B-701-B6-F-BR-CN
B-701-B6-F-BR-CN-Z
B-1002-C4-F-BR-CN-B-Z
B-1003-C4-F-BR-CN-B
B-1003-C4-F-BR-CN-B-Z
B-1004-C4-F-BR-CN-B
B-1004-C4-F-BR-CN-B-Z
B-1202-C4-F-BR-CN-B
B-1202-C4-F-BR-CN-B-Z
B-1203-C4-F-BR-CN-B
B-1203-C4-F-BR-CN-B-Z
B-1204-C4-F-BR-CN-B-Z
B-1205-C4-F-BR-CN-B-Z
B-1206-C4-F-BR-CN-B
B-1206-C4-F-BR-CN-B-Z
B-1602-C4-F-BR-CN-B-Z
B-1603-C4-F-BR-CN-B-Z
B-1604-C4-F-BR-CN-B-Z
B-1606-C4-F-BR-CN-B-Z
B-701-C4-F-BR-CN-B-Z
B-702-C4-F-BR-CN-B-Z
B-703-C4-F-BR-CN-B-Z

B-1002-C4-F-BR-CN
B-1003-C4-F-BR-CN
B-1003-C4-F-BR-CN-Z
B-1004-C4-F-BR-CN
B-1004-C4-F-BR-CN-Z
B-1202-C4-F-BR-CN
B-1202-C4-F-BR-CN-Z
B-1203-C4-F-BR-CN
B-1203-C4-F-BR-CN-Z
B-1204-C4-F-BR-CN
B-1204-C4-F-BR-CN-Z
B-1205-C4-F-BR-CN
B-1206-C4-F-BR-CN
B-1206-C4-F-BR-CN-Z
B-1606-C4-F-BR-CN
B-1607-C4-F-BR-CN-Z
B-702-C4-F-BR-CN
B-702-C4-F-BR-CN-Z
B-1002-C6-F-BR-CN-B
B-1002-C6-F-BR-CN-B-Z
B-1004-C6-F-BR-CN-B-Z
B-1202-C6-F-BR-CN-B
B-1202-C6-F-BR-CN-B-Z
B-1203-C6-F-BR-CN-B-Z
B-1204-C6-F-BR-CN-B-Z
B-1205-C6-F-BR-CN-B-Z
B-1206-C6-F-BR-CN-B-Z
B-1208-C6-F-BR-CN-B-Z
B-1602-C6-F-BR-CN-B-Z
B-1604-C6-F-BR-CN-B-Z
B-1605-C6-F-BR-CN-B
B-1605-C6-F-BR-CN-B-Z
B-1606-C6-F-BR-CN-B-Z
B-1607-C6-F-BR-CN-B-Z
B-1608-C6-F-BR-CN-B-Z
B-702-C6-F-BR-CN-B-Z
B-703-C6-F-BR-CN-B-Z
B-1002-C6-F-BR-CN
B-1003-C6-F-BR-CN-Z
B-1202-C6-F-BR-CN-Z
B-1203-C6-F-BR-CN
B-1204-C6-F-BR-CN-Z
B-1205-C6-F-BR-CN
B-1206-C6-F-BR-CN
B-1606-C6-F-BR-CN
B-1606-C6-F-BR-CN-Z
B-1607-C6-F-BR-CN
B-1608-C6-F-BR-CN
B-701-C6-F-BR-CN
B-1003-D4-F-BR-CN-B-Z
B-1004-D4-F-BR-CN-B-Z
B-1202-D4-F-BR-CN-B-Z
B-1203-D4-F-BR-CN-B-Z
B-1204-D4-F-BR-CN-B-Z
B-1205-D4-F-BR-CN-B-Z
B-1206-D4-F-BR-CN-B-Z
B-1602-D4-F-BR-CN-B-Z
B-1603-D4-F-BR-CN-B-Z
B-1604-D4-F-BR-CN-B
B-1604-D4-F-BR-CN-B-Z
B-1605-D4-F-BR-CN-B-Z
B-1606-D4-F-BR-CN-B-Z
B-1607-D4-F-BR-CN-B-Z
B-1003-D4-F-BR-CN
B-1004-D4-F-BR-CN-Z
B-1203-D4-F-BR-CN
B-1206-D4-F-BR-CN
B-1206-D4-F-BR-CN-Z
B-1602-D4-F-BR-CN
B-1604-D4-F-BR-CN-Z
B-1606-D4-F-BR-CN-Z
B-1610-D4-F-BR-CN
B-1002-D6-F-BR-CN-B-Z
B-1004-D6-F-BR-CN-B-Z
B-1202-D6-F-BR-CN-B-Z
B-1203-D6-F-BR-CN-B-Z
B-1204-D6-F-BR-CN-B-Z
B-1205-D6-F-BR-CN-B-Z
B-1206-D6-F-BR-CN-B-Z
B-1207-D6-F-BR-CN-B-Z
B-1602-D6-F-BR-CN-B-Z
B-1603-D6-F-BR-CN-B-Z
B-1604-D6-F-BR-CN-B-Z
B-1605-D6-F-BR-CN-B-Z
B-1606-D6-F-BR-CN-B-Z
B-1608-D6-F-BR-CN-B-Z
B-1003-D6-F-BR-CN-Z
B-1004-D6-F-BR-CN
B-1204-D6-F-BR-CN
B-1206-D6-F-BR-CN-Z
B-1603-D6-F-BR-CN-Z
B-1604-D6-F-BR-CN
B-1608-D6-F-BR-CN
B-1608-D6-F-BR-CN-Z
B-1605-E6-F-BR-CN-B-Z
B-1607-E6-F-BR-CN-B-Z
B-1605-E6-F-BR-CN
B-1608-E6-F-BR-CN
B-703-A4-F-CN-B-Z
B-1002-B6-F-CN-B-Z
B-702-C4-F-CN-B-Z
B-1003-C4-F-CN
B-1205-2.78-6-F-BR
B-1004-3-4-F-BR
B-1208-6-6-F-BR
B-1002-A4-F-BR
B-1002-A4-F-BR-Z
B-1003-A4-F-BR
B-1003-A4-F-BR-Z
B-1004-A4-F-BR
B-1202-A4-F-BR
B-1202-A4-F-BR-Z
B-1203-A4-F-BR
B-1204-A4-F-BR
B-1205-A4-F-BR
B-1602-A4-F-BR
B-1602-A4-F-BR-Z
B-1604-A4-F-BR
B-701-A4-F-BR
B-701-A4-F-BR
B-701-A4-F-BR-Z
B-702-A4-F-BR
B-702-A4-F-BR-Z
B-703-A4-F-BR
B-703-A4-F-BR-Z
B-1002-A6-F-BR
B-1003-A6-F-BR
B-1003-A6-F-BR-Z
B-1004-A6-F-BR
B-1202-A6-F-BR
B-1203-A6-F-BR
B-1203-A6-F-BR-Z
B-1204-A6-F-BR
B-1205-A6-F-BR
B-1602-A6-F-BR
B-1604-A6-F-BR
B-701-A6-F-BR
B-702-A6-F-BR
B-702-A6-F-BR-Z
B-703-A6-F-BR
B-703-A6-F-BR-Z
B-1002-B4-F-BR
B-1002-B4-F-BR-Z
B-1003-B4-F-BR
B-1003-B4-F-BR-Z
B-1004-B4-F-BR
B-1004-B4-F-BR-Z
B-1202-B4-F-BR
B-1202-B4-F-BR-Z
B-1203-B4-F-BR
B-1203-B4-F-BR-Z
B-1204-B4-F-BR
B-1204-B4-F-BR-Z
B-1205-B4-F-BR
B-1205-B4-F-BR-Z
B-1206-B4-F-BR
B-1207-B4-F-BR
B-1208-B4-F-BR
B-1602-B4-F-BR
B-1603-B4-F-BR
B-1604-B4-F-BR
B-1604-B4-F-BR-Z

B-1605-B4-F-BR
B-1605-B4-F-BR-Z
B-1606-B4-F-BR
B-1607-B4-F-BR
B-701-B4-F-BR
B-702-B4-F-BR
B-702-B4-F-BR-Z
B-703-B4-F-BR
B-703-B4-F-BR-Z
B-1002-B6-F-BR
B-1003-B6-F-BR
B-1003-B6-F-BR-Z
B-1004-B6-F-BR
B-1202-B6-F-BR
B-1203-B6-F-BR
B-1203-B6-F-BR-Z
B-1204-B6-F-BR
B-1205-B6-F-BR
B-1206-B6-F-BR
B-1207-B6-F-BR
B-1207-B6-F-BR-Z
B-1208-B6-F-BR
B-1603-B6-F-BR
B-1604-B6-F-BR
B-1605-B6-F-BR
B-1606-B6-F-BR
B-1608-B6-F-BR
B-1609-B6-F-BR
B-701-B6-F-BR
B-701-B6-F-BR-Z
B-702-B6-F-BR
B-703-B6-F-BR
B-1002-C4-F-BR
B-1002-C4-F-BR-Z
B-1003-C4-F-BR
B-1003-C4-F-BR-Z
B-1004-C4-F-BR
B-1004-C4-F-BR-Z
B-1202-C4-F-BR
B-1202-C4-F-BR-Z
B-1203-C4-F-BR
B-1203-C4-F-BR-Z
B-1204-C4-F-BR
B-1204-C4-F-BR-Z
B-1205-C4-F-BR
B-1205-C4-F-BR-Z
B-1206-C4-F-BR
B-1206-C4-F-BR-Z
B-1207-C4-F-BR
B-1208-C4-F-BR
B-1208-C4-F-BR-Z
B-1602-C4-F-BR
B-1602-C4-F-BR-Z
B-1603-C4-F-BR
B-1604-C4-F-BR
B-1605-C4-F-BR
B-1605-C4-F-BR-Z
B-1606-C4-F-BR
B-1606-C4-F-BR-Z
B-1607-C4-F-BR
B-1608-C4-F-BR
B-1608-C4-F-BR-Z
B-1609-C4-F-BR
B-1610-C4-F-BR
B-701-C4-F-BR
B-702-C4-F-BR
B-702-C4-F-BR-Z
B-703-C4-F-BR
B-703-C4-F-BR-Z
B-1002-C6-F-BR
B-1002-C6-F-BR-Z
B-1003-C6-F-BR
B-1003-C6-F-BR-Z
B-1004-C6-F-BR
B-1004-C6-F-BR-Z
B-1202-C6-F-BR
B-1203-C6-F-BR
B-1203-C6-F-BR-Z
B-1204-C6-F-BR
B-1204-C6-F-BR-Z
B-1205-C6-F-BR
B-1205-C6-F-BR-Z
B-1206-C6-F-BR
B-1206-C6-F-BR-Z
B-1207-C6-F-BR
B-1208-C6-F-BR
B-1208-C6-F-BR-Z
B-1602-C6-F-BR
B-1602-C6-F-BR-Z
B-1603-C6-F-BR
B-1603-C6-F-BR-Z
B-1604-C6-F-BR
B-1605-C6-F-BR
B-1606-C6-F-BR
B-1607-C6-F-BR
B-1608-C6-F-BR
B-1608-C6-F-BR-Z
B-1610-C6-F-BR
B-701-C6-F-BR
B-701-C6-F-BR-Z
B-702-C6-F-BR
B-702-C6-F-BR-Z
B-703-C6-F-BR
B-1002-D4-F-BR
B-1002-D4-F-BR-Z
B-1003-D4-F-BR
B-1003-D4-F-BR-Z
B-1004-D4-F-BR
B-1202-D4-F-BR
B-1203-D4-F-BR
B-1203-D4-F-BR-Z
B-1204-D4-F-BR
B-1204-D4-F-BR-Z
B-1205-D4-F-BR
B-1205-D4-F-BR-Z
B-1206-D4-F-BR
B-1206-D4-F-BR-Z
B-1207-D4-F-BR
B-1208-D4-F-BR
B-1208-D4-F-BR-Z
B-1602-D4-F-BR
B-1602-D4-F-BR-Z
B-1603-D4-F-BR
B-1604-D4-F-BR
B-1604-D4-F-BR-Z
B-1605-D4-F-BR
B-1605-D4-F-BR-Z
B-1606-D4-F-BR
B-1606-D4-F-BR-Z
B-1607-D4-F-BR
B-1608-D4-F-BR
B-1608-D4-F-BR-Z
B-1610-D4-F-BR
B-702-D4-F-BR
B-703-D4-F-BR
B-1002-D6-F-BR
B-1002-D6-F-BR-Z
B-1003-D6-F-BR
B-1004-D6-F-BR
B-1202-D6-F-BR
B-1202-D6-F-BR-Z
B-1203-D6-F-BR
B-1204-D6-F-BR
B-1204-D6-F-BR-Z
B-1205-D6-F-BR
B-1206-D6-F-BR
B-1206-D6-F-BR-Z
B-1207-D6-F-BR
B-1208-D6-F-BR
B-1602-D6-F-BR
B-1603-D6-F-BR
B-1604-D6-F-BR
B-1605-D6-F-BR
B-1606-D6-F-BR
B-1607-D6-F-BR
B-1608-D6-F-BR
B-1608-D6-F-BR-Z
B-1609-D6-F-BR
B-1609-D6-F-BR-Z
B-1610-D6-F-BR
B-1605-E6-F-BR
B-1606-E6-F-BR
B-1610-E6-F-BR
B-1003-C4-F-B
B-1206-D4-F
B-1002-A4-O-BR-CN-B-Z
