BPS Series
Stainless steel brazed plate coolers for various applications.

  Products:
  Water-to-Oil Cooling
  - Stainless Steel Construction - Corrosion Resistant TYPE 316
  - Stacked Plate - Mounting Studs Standard
  - Copper Brazed - SAE Oil Connections
  - High Performance - NPT Water Connections
  - Compact Design - Optional Mounting Bracket
  - SAE Connections - Nicke/Chrome Options

  Ratings:
  Maximum Temp: 350 F at 450psi
  Maximum Pressure: 450psi
  Test Pressure: 600psi
  Materials:
  Plate Material: 316L Stainless
  Braze Material: Copper Standard
  Stud Bolts: 304 Stainless
  F/B Pressure Plates: 304 Stainless
  Connectors: 304 Stainless
  Foot Brackets: 304 Stainless
- PDF DATASHEET
- PDF DATASHEET (DISCONTINUED UNITS)
- Buy Online

Dimensions:

Model A B C D E F G H Oil SAE Water NPT Net Wt Lbs
SAE NPT
BPS-12-12x5 4.9 12.2 2.61 2.7 9.9 2.5 3.5 1.25 1.12 #12 3/4 8
BPS-24-12x5 3.75 12
BPS-36-12x5 5.00 1.5 1.25 #20 1-1/2 16
BPS-70-12x5 8.19 27
BPS-24-20x10 9.8 20.3 3.99 6.5 17.0 4.0 5.5 1.75 1.38 #24 1-1/2 39
BPS-50-20x10 6.44 68
BPS-80-20x10 9.25 100

NOTE: We reserve the right to make reasonable design changes without notice. Dimensions are in inches.
SAE Connection Thread Forms: #12 SAE = 1-1/16 - 12UN-2B #20 SAE = 1-5/8 - 12UN-2B #24 SAE = 1-7/8 - 12UN-2B
NPT Connections are internal threads (female).

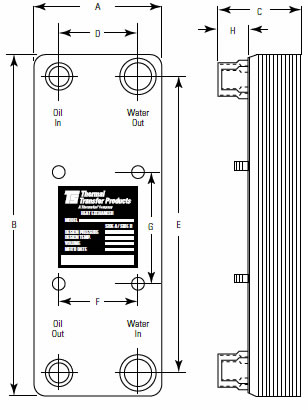

BPS Layout
