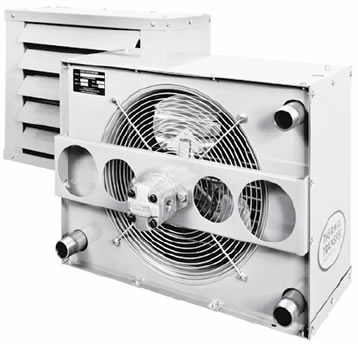

AOVHM Series |
Thermal Transfer Heat Exchangers: |
Air Cooled Heat Exchangers |
|
| |
| |
Features: |
| |
| |
AO/AOVH Series with
Hydraulic Motor |
| |
High Heat Removal |
| |
Heavy Duty Construction |
| |
Wide Flow Range |
| |
Heat Removal up to 210,000 BTU/Hr. |
| |
Long Life Hydraulic Motor |
| |
NPT Connections |
|
| |
Ratings: |
| |
| |
Operating Pressure: 300 psi
|
| |
Test Pressure 300 psi |
| |
Operating Temperature 400° F |
|
| |
Materials: |
| |
| |
Tubes Copper
|
| |
Fins Aluminum |
| |
Turbulators Steel |
| |
Fan Blade Aluminum with steel hub |
| |
Fan Guard Zinc plated steel |
| |
Cabinet Steel with baked enamel finish |
| |
Manifolds Steel |
| |
Connections Steel |
|
|
|
|
| |
| Quotes & Ordering Information: Thermal Transfer AOVHM Series, please contact us: 1-888-226-8522 |
|
|
|
|
 |
|
