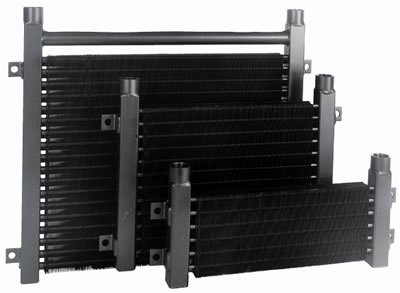

M Series |
Thermal Transfer Heat Exchangers: |
Air Cooled Heat Exchangers |
|
| |
| |
Features: |
| |
| |
High Strength Construction |
| |
3/8” Tube Size |
| |
Eliminate Piping, Reduce Cost with
Optional Built-in Relief Bypass |
| |
Aluminum Fins |
| |
Rugged Steel Manifolds |
| |
Heat Removal up to 90,000 BTU/Hr |
| |
Oil Flows to 100 GPM |
| |
Mounting Brackets Included |
| |
SAE, NPT or 37° Flair Oil Connections |
|
| |
Ratings: |
| |
| |
Operating Pressure: 300 psi
|
| |
Test Pressure 300 psi |
| |
Operating Temperature 400° F |
|
| |
Materials: |
| |
| |
Tubes Copper
|
| |
Fins Aluminum |
| |
Turbulators Steel |
| |
Fan Guard Zinc plated steel |
| |
Manifolds Steel |
| |
Connections Steel |
|
|
|
|
| |
| Quotes & Ordering Information: Thermal Transfer M Series, please contact us: 1-888-226-8522 |
|
|
|
|
 |
|
